A HIGH EFFICIENCY HEAT PUMP DEHUMIDIFIER FOR HOT PEPPER DRYING
Chili is mainly divided into five categories: tufted pepper, long pepper, sweet persimmon pepper, cherry pepper, conical pepper, etc. There are more than 2000 kinds of pepper in the world. The higher the degree of capsicum is, the hotter the pepper is. Fresh chili has a very short shelf life and can be preserv

Pepper Drying Machine Instruction
Pepper has a large moisture content and is easy to rot in wet environment,so it is more important to remove moisture inside drying room in time than to control drying temperature during drying.
"Dryfree"Pepper drying special heat pump drying height efficiency dehumidifier,specially designed for pepper drying,heat source using heat pump drying, high efficiency dehumidification system timely release moisture in the baking room;the whole process of drying computer monitoring,Accurate control of drying temperature; optimal air duct layout to ensure uniform temperature in all parts of the baking room. All materials in the baking room are heated evenly, the drying degree is even after drying, the color is uniform, and the whole drying process is free of pollution and discharge, High efficiency, low energy consumption, dried pepper is superior to natural drying, the quality is superior.) In the drying process, there is no open fire or overheating, which effectively eliminates the phenomenon of contact with open fire or overheating of hot pepper during conventional drying. It can realize low temperature drying, high efficiency dehumidification, and improve drying speed.It can also ensure that nutrition elements will not be lost, which is the first choice of drying machine for modern green organic agriculture.)
Product Advantage:
1.The heating and dehumidification system is integrated, the equipment is smaller, the installation is more convenient, and the operation is more stable.
2.Automatic computer control operation, no manual guard, running data LCD display, drying process data is intuitive and clear.
3.Closed cycle heating system and dehumidification system can save energy to the maximum extent and will not pollute the surrounding environment.
4.Accurate drying temperature controlled and efficient dehumidification, do not destroy the internal nutrients of pepper or cause nutrient loss.
5.The maximum heating temperature can reach above 85 degrees.
6.High efficiency, low energy consumption, no pollution, stable performance.
Schematic Diagram
1.The heating and dehumidification system is integrated, the equipment is smaller, the installation is more convenient, and the operation is more stable.
2.Automatic computer control operation, no manual guard, running data LCD display, drying process data is intuitive and clear.
3.Closed cycle heating system and dehumidification system can save energy to the maximum extent and will not pollute the surrounding environment.
4.Accurate drying temperature controlled and efficient dehumidification, do not destroy the internal nutrients of pepper or cause nutrient loss.
5.The maximum heating temperature can reach above 85 degrees.
6.High efficiency, low energy consumption, no pollution, stable performance.

Cotroller parameter

A Project of Pod Pepper Drying
1)Pod pepper water content:80%->10%
2)Configuration:1 axial flow fan and 4 negative pressure fans
3)Dehumidifier should be started during baking
4)Each 4 kg of fresh pod pepper bakes about 1 kg dry pod pepper
5)Dry 1000kg one batch: Use dehumidifier, 12P+36KW electrical heating
6)Drying room size: 6800(L) *2700(W)*2300(H)
7)Drying time:32H
8)Trolley 10pcs,15 layer each trolley,two tray each layer,total 300 trays
9)Trolley size1200(L)*890(W)*2150(H)

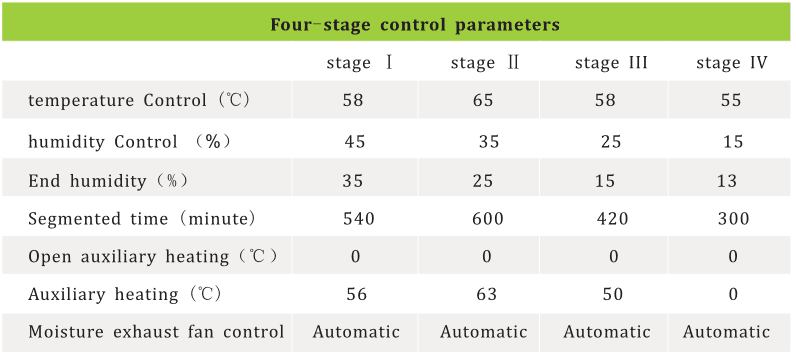

Cotroller parameter
Total control parameter
Segment number(segment) 4
control model time
Running time limit hours 32
Control temperature difference ℃ 2.0
Wet control delay minute 1
Preheating temperature ℃ 55
time minute 60
Preheating and open
auxiliary heating(℃) 0
Preheating and closed
auxiliary heating (℃) 54
Drying photos
